Product Dimensions 79.5"h x 27.5"w x 35"d

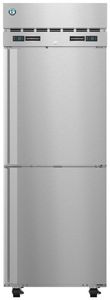

The DT1A-HS Steelheart Series Dual Temp single section refrigerator and freezer with a half stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C) with a interior capacity of 10.19 cubic feet refrigerator, 10.9 cubic feet freezer this efficient dual temp refrigerator and freezer.Read More
Interior capacity of 10.19 cubic feet refrigerator, 10.9 cubic feet freezer
Exclusive “stepped” door design to protect recessed door gasket
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
One piece, full door length, extruded aluminum flush mount door handle
Lockable half stainless doors
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
R-290 refrigerant
Standard with (4) 4″ Stem Casters (2 with brakes)
Includes 3 epoxy coated wire coated shelves
Optional Kits: 6″ legs, epoxy or stainless steel shelves, tray/pan slides, foot pedal door opener, stainless steel back
Nominal Compres. of 988 BTU/hr at 1/6 HP refrigerator and 1354 BTU/hr at 1/5 HP freezer
115v/60/1, 10 ft. cord and plug
Top mounted energy efficient non-electric evaporation system
General Specs | |
| Width (in.) | 27.5 |
| Depth (in.) | 35 |
| Height (in.) | 79.5 |
| Freezer Capacity (cu. ft.) | 10.9 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Stainless Steel |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Fingerprint Resistant Finish | No |
| Collection Code | DT1A |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Ice/Water Dispenser | No |
| Number of Doors | 2 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | No |
| Custom Panel Ready | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 36 |
| Shipping Height (in.) | 81 |
| Voltage | 104-126 |
| Amp | 5.5 |
| Refrigeration Dispenser Features | No Dispenser |
| Ice Maker Type | None |
| Refrigeration General Features | LED Light, Wheels |
| Overall Height (in.) | 79.5 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | 32° to 52°F | - 10° to 10°F |
| Energy Consumption (kWh/day) @NSF | 4.49 |
| Heat Rejection (BTU/Hr.) @NSF | 168 | 439 |
| Approximate Nominal Compres. BTU/HR (HP) | 988 (1/6HP) | 1354 (1/5HP) |
| Amperage | 5.5 |
| Refrigerant / Charge Amount (oz) | R290 (2.1 oz) | R290 (2.5 oz) |
